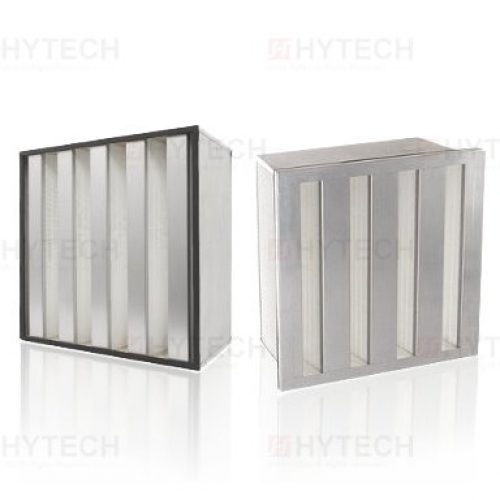

HEPA -V type
FEATURES
Unique V-shaped design, the filter area is 40% larger than the traditional filter, which can handle larger air volume and higher dust collection.
- The mini pleated V-Bank low-pressure loss filter can handle large air volume and has a long service life.
- Efficiency: PAO 99.99%, 99.995% at 0.3µm
Standard: EN1822, Class H13 / H14. - Durable temperature: 80ºC
Durable humidity: 100%RH (NO Dew) - The filter has a colorimetric efficiency of 60-65%, 80-85%, 90-95% to choose from.
- Can choose galvanized iron frame, aluminum frame or stainless steel frame.
- Provide a variety of configurations to meet various strict clean requirements.
- There are also ultra-high efficiency ULPA models to choose from.
※ The filter screen can be flexibly designed according to customer needs, and the material, origami thickness, filter efficiency, air volume and air inlet size can be selected.
※ Various sizes, specifications and any special functions can be customized.
※ All kinds of special customized designs, there are too many types to be uploaded, please inquire and refer to the actual performance unit.
Specification
Material, conditions of use
| outer frame Frame |
painted steel plate, galvanized iron frame, aluminum frame, stainless steel frame Cold rolled steel painted, Galvanized Steel, Aluminum or Stainiess Steel |
|
| Outer frame style Frame Type |
Box type Box Type |
single flange /’double flange Single Header or Double Header |
| filter Media |
Glass fiber paper Waterproof fire retardant glassfiber |
|
| Spacer Gasket |
Neoprene EPDM |
|
| Next material Bond |
Epoxy Resin PU Fire-retadant Urthane |
|
| Maximum temperature Temperature |
80°C | |
| Maximum humidity Humidity% RH |
100% (without condensation) 100% (No condensation state) |
|
Test conditions
| Test method Test Method |
|
| Complement efficiency HEPA Efficiency HEPA |
≥ 99.97%, ≥ 99.99% (0.3µm) |
| Complement efficiency ULPA Efficiency ULPA |
≥ 99.999%, ≥ 99.9995% (0.1µm-0.2µm) |
Air volume and size table (size mark: HxWxD mm)
| Efficiency( %) Efficiency |
general size (WxHxD)(inch) Nominal Size |
actual size (WxHxD)(mm) Actual Size |
Rated air volume (CMH) Rated Capacity |
pressure loss (Pa) Pressure Drop |
|
| Initial pressure loss INITIAL P.D |
Final pressure loss FINAL P.D |
||||
| 99.97 99.99 |
12x24x12 | 287x592x292 | 1500 | 250 | 500 |
| 24x24x12 | 592x592x292 | 3000 | |||
| 12x24x12 | 305x610x292 | 1700 | |||
| 24x24x12 | 610x610x292 | 3400 | |||
