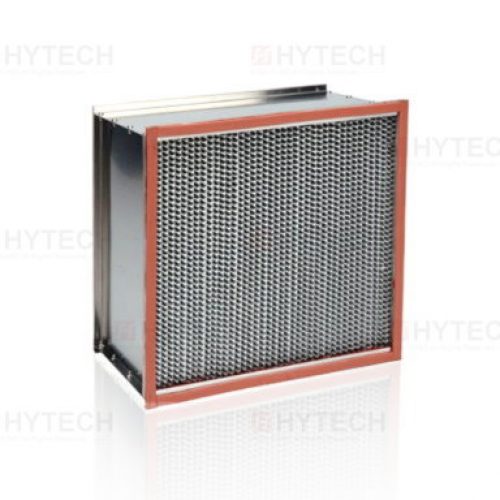

HEPA – type high temperature aluminum clapboard

It is an ultra-high performance filter that is used for high temperature. Its efficiency can be used for a long time at a normal temperature of 250 ℃ and it can still maintain a 0.3 µm monodisperse DOP test of more than 99.97%.

• Efficiency: PAO 99.99%, 99.995% at 0.3µm
  Standard: EN1822, Class H13 / H14.
• Durable temperature: 80ºC
  Durable humidity: 100%RH (NO Dew)
• The pressure loss is small, the processing air volume is large, which can filter a large amount of dust.
• The double frills of the aluminum partition prevent the filter paper from being inserted and provide maximum safety.
• Stainless steel (SUS304) outer frame, strong glass fiber paper filter material.
• Connected by high-temperature resistant Silicone, the gasket is also made of the same material, and the filter paper is separated from the support with aluminum material and is completely tightly connected.
• It is suitable for hot air drying places with extremely high cleanliness requirements such as the rubber industry and medical treatment, and the final exhaust port of the radioactive waste burning furnace.
• There are also ultra-high efficiency ULPA models to choose from.

※ The filter screen can be flexibly designed according to customer needs, and the material, origami thickness, filter efficiency, air volume and air inlet size can be selected.
※ Various sizes, specifications and any special functions can be customized.
※ All kinds of special customized designs, there are too many types to be uploaded, please inquire and refer to the actual performance unit.
