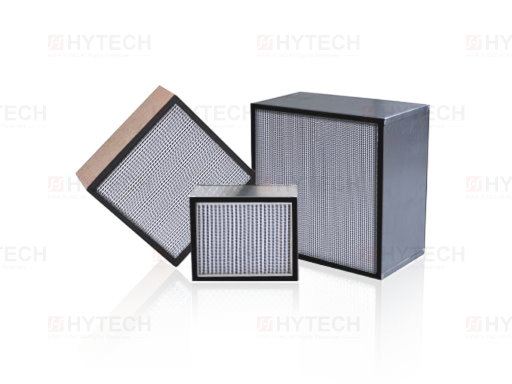

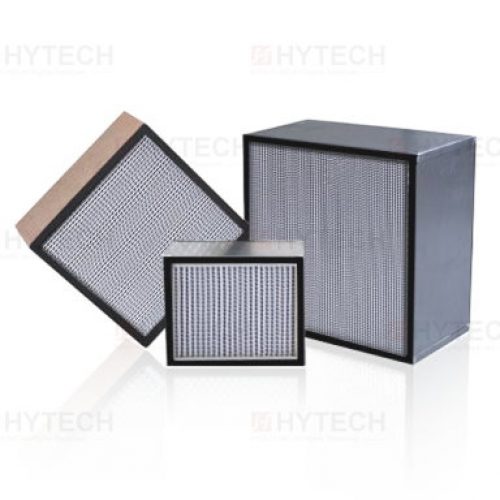

HEPA – aluminum diaphragm type
FEATURES
The pressure loss is small and the air volume is large. The partition-type filter is separated by at least 0.038mm in corrugated shape. The corrugated aluminum partition maintains the equidistant interval of each pleat filter paper, and the airflow is easy to pass through to ensure the filter material Effective use and increase strength.
- Efficiency: PAO 99.99%, 99.995% at 0.3µm
Standard: EN1822, Class H13 / H14. - Durable temperature: 80ºC
Durable humidity: 100%RH (NO Dew) - The pressure loss is small, the processing air volume is large, which can filter a large amount of dust.
- The double frills of the aluminum partition prevent the filter paper from being inserted and provide maximum safety.
- Long life, light weight, easy to replace and install.
- Suitable for various industries with highly clean air.
- There are also ultra-high efficiency ULPA models to choose from.
※ The filter screen can be flexibly designed according to customer needs, and the material, origami thickness, filter efficiency, air volume and air inlet size can be selected.
※ Various sizes, specifications and any special functions can be customized.
※ All kinds of special customized designs, there are too many types to be uploaded, please inquire and refer to the actual performance unit.
Specification
Material, conditions of use
| outer frame Frame |
Wooden frame, galvanized iron frame, aluminum frame, stainless steel frame Wooden, Galvanized Steel, Aluminum or Stainiess Steel |
|
| filter Media |
Glass fiber paper Waterproof fire retardant glassfiber |
|
| Spacer Gasket |
Neoprene EPDM |
|
| Next material Bond |
Epoxy Resin PU Fire-retadant Urthane |
|
| Maximum temperature Temperature |
80°C | |
| highest humidity Humidity% RH |
100% (without condensation) 100% (No condensation state) |
|
Test conditions
| test method Test Method |
|
| Complement efficiency ASHRAE Efficiency ASHRAE |
65% ~ 95% |
| Complement efficiency HEPA Efficiency HEPA |
≥ 99.97%, ≥ 99.99% (0.3µm) |
| Complement efficiency ULPA Efficiency ULPA |
≥ 99.999%, ≥ 99.9995%, ≥ 99.9999% (0.1µm-0.2µm) |
Air volume and size table (size mark: HxWxD mm)
| Efficiency( %) Efficiency |
general size (WxHxD)(inch) Nominal Size |
actual size (WxHxD)(mm) Actual Size |
Rated air volume (CMH) Rated Capacity |
pressure loss (Pa) Pressure Drop |
|
| Initial pressure loss INITIAL P.D |
Final pressure loss FINAL P.D |
||||
| Standard Capacity | |||||
| 95 | 12x24x6 | 305x610x150 | 850 | 150 | 374 |
| 24x24x6 | 610x610x150 | 1700 | |||
| 12x24x12 | 305x610x292 | 1700 | 237 | 500 | |
| 24x24x12 | 610x610x292 | 3400 | |||
| 99.97 99.99 |
12x24x6 | 305x610x150 | 600 | 250 | 500 |
| 24x24x6 | 610x610x150 | 1200 | |||
| 12x24x12 | 305x610x292 | 950 | |||
| 24x24x12 | 610x610x292 | 1900 | |||
| High Air Volume High Capacity | |||||
| 99.97 99.99 |
12x24x12 | 305x610x292 | 1700 | 336 | 500 |
| 24x24x12 | 610x610x292 | 3400 | |||
