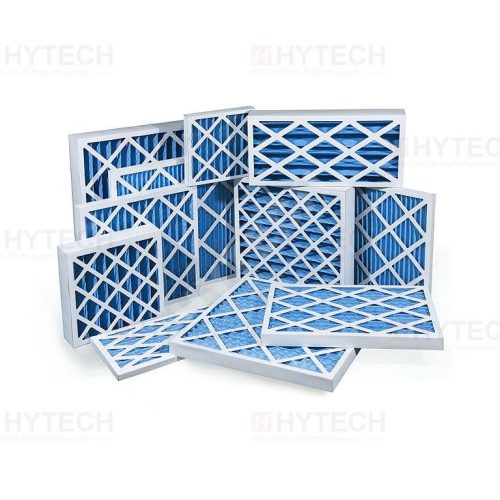

Discarding of primary filter
FEATURES
- The wedge-shaped pleats have the largest filtering area, and the airflow can help to collect dust. It is widely accepted in high performance and long-term needs.
- It is also suitable for variable air volume systems. It can be installed in the box by using the clip.
※ The filter screen can be flexibly designed according to customer needs, and the material, origami thickness, filter efficiency, air volume and air inlet size can be selected.
※ Various sizes, specifications and any special functions can be customized.
※ All kinds of special customized designs, there are too many types to be uploaded, please inquire and refer to the actual performance unit.
Specification
Material, conditions of use
| outer frame Frame |
Paper frame, galvanized iron frame, aluminum frame, stainless steel frame, environmentally friendly plastic frame Paper Frame, Galvanized Steel, Aluminum, Stainiess Steel, Glycan |
|
| Filter material Media |
non-woven cotton and synthetic fiber blend Special Belended of Nonwoven Cotton and Synthetic Fibers |
Glass fiber paper Fiberglass |
| support net Support Grid |
Corrosion-resistant metal supporting net, adopting wedge-shaped structure Anticorrosion Metal Support Grid w/Radial Wedge Pleats |
|
| Maximum temperature Temperature |
40°C | 60°C |
| Maximum humidity Humidity% RH |
98% (without condensation) 98% (No condensation state) |
100% (without condensation) 100% (No condensation state) |
Test conditions
| Test method Test Method |
colorimetry Dot Spot Efficiency (in NBS) |
specific gravity method Arrestance (in AFI) |
specific gravity method Arrestance (in AFI) |
| 30~35% | 90~94% | 65~94% | |
| ASHRAE Standard 52.1-1992 (Equal to EN 779) | |||
Filter material: Non-woven cotton and synthetic fiber blend (Special Belended of Nonwoven Cotton and Synthetic Fibers)
Air volume and size table (size mark: HxWxD mm)
| Efficiency ( %) Efficiency |
general size (WxHxD)(inch) Nominal Size |
actual size (WxHxD)(mm) Actual Size |
Rated air volume (CMH) Rated Capacity |
pressure loss (Pa) Pressure Drop |
||
| Colorimetry Dot Spot Efficiency (in NBS) |
specific gravity method Arrestance (in AFI) |
Initial pressure loss INITIAL P.D |
Final pressure loss FINAL P.D |
|||
| 30~35 | 90~9 | 12x24x1 | 289x595x22 | 1700 | 87 | 130 |
| 16x25x1 | 390x619x22 | 2380 | ||||
| 20x20x1 | 492x492x22 | 2380 | ||||
| 20x24x1 | 492x595x22 | 2800 | ||||
| 24x24x1 | 595x595x22 | 3400 | ||||
| 12x24x2 | 289x595x45 | 1700 | 65 | 130 | ||
| 20x20x2 | 492x492x45 | 2380 | ||||
| 20x24x2 | 492x595x45 | 2800 | ||||
| 24x24x2 | 595x595x45 | 3400 | ||||
| 12x24x4 | 289x595x95 | 1700 | 50 | 130 | ||
| 24x24x4 | 595x595x95 | 3400 | ||||
Filter material: Fiberglass (Fiberglass)
Air volume and size table (size mark: HxWxD mm)
| Efficiency (%) Efficiency |
general size (WxHxD)(inch) Nominal Size |
actual size (WxHxD)(mm) Actual Size |
Rated air volume (CMH) Rated Capacity |
pressure loss (Pa) Pressure Drop |
|
| specific gravity method Arrestance (in AFI) |
Initial pressure loss INITIAL P.D |
Final pressure loss FINAL P.D |
|||
| > 65 | 12x24x1 | 289x595x22 | 1020 | 36 | 125 |
| 16x20x1 | 390x492x22 | 1140 | |||
| 16x25x1 | 390x619x22 | 1420 | |||
| 20x20x1 | 492x492x22 | 1420 | |||
| 20x25x1 | 492x619x22 | 1770 | |||
| 24x24x1 | 595x595x22 | 2050 | |||
| > 65 | 12x24x2 | 289x595x45 | 1020 | 63 | 125 |
| 16x20x2 | 390x492x45 | 1140 | |||
| 16x25x2 | 390x619x45 | 1420 | |||
| 20x20x2 | 492x492x45 | 1420 | |||
| 20x25x2 | 492x619x45 | 1770 | |||
| 24x24x2 | 595x595x45 | 2050 | |||
