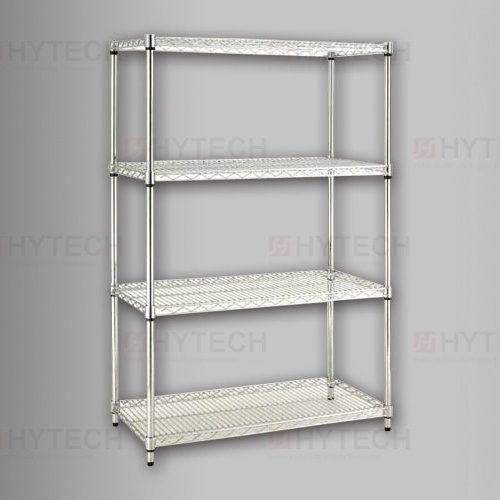

Modular shelving (flat. Net style)

組合式鍍鉻置物架 平板型-網式型-內頁1

FEATURES

  • Suitable for general electronics industry, clean rooms below class 1000, hospitals and laboratories.
  • Wire design, beautiful and durable, maintenance-free.
  • The combination is easy to install, and only a rubber mallet can complete all the installation or disassembly.
  • The height can be adjusted every inch to match the display items.
  • Each layer of iron net can load 200kgs, and the whole set of material racks can load 600kgs.
  • Mesh-standard type / load 200KG
  • Material-C: Chrome plated S: Stainless steel

※ This product is also made of stainless steel.
※ The products on the market are introduced and changed rapidly, and there are many types, specifications and brands, which are not as good as stock.
※ Welcome to contact us directly. We will provide professional and appropriate product targets and suggestions according to your actual use needs.

Specification

Mesh material: S-stainless steel C-chrome plated

Size/Model 1424 1430 1436 1442 1448 1454 1460 1472
width x length 31x61cm 37x76cm 36x91cm 36x107cm 36x122cm 36x317cm 36x152cm 36x183cm
Size/Model 1824 1830 1836 1842 1848 1854 1860 1872
width x length 46x76cm 46x91cm 46x107cm 46x122cm 46x137cm 46x152cm 46x183cm 46x61cm
Size/Model 2124 2130 2136 2142 2148 2154 2160 2172
width x length 53x61cm 53x76cm 53x91cm 53x107cm 53x122cm 53x137cm 53x152cm 53x183cm
Size/Model 2424 2430 2436 2442 2448 2454 2460 2472
width x length 61x61cm 61x76cm 61x91cm 61x107cm 61x122cm 61x137cm 61x152cm 61x183cm
Size/Model 2855 3036 3048 3060 3072 3648 3660 3672
width x length 72x140cm 76x91cm 76x122cm 76x152cm 76x183cm 91x122cm 91x152cm 91x183cm



Support rod (can be highly cut as required)

Model P34 P42 P54 P63 P74 P86
Height 86cm 107cm 137cm 160cm 188cm 218cm
